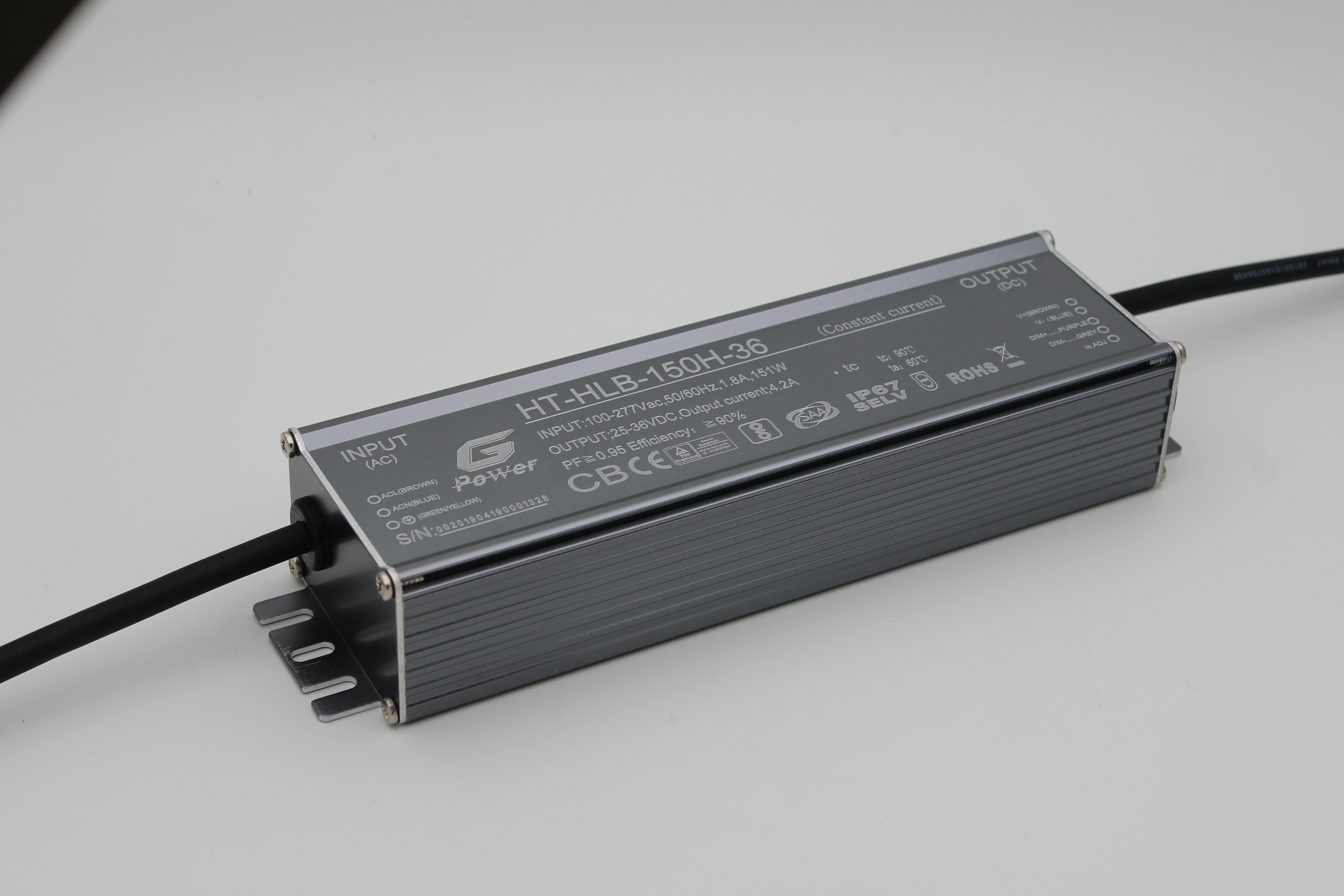

HLB series 150W Outdoor Led Driver Constant Current Power Supply IP67

  • 1
  • 2

Brand Name : Phenson

Model Number : HLB-150H-36A

Certification : CE Rohs

Place of Origin : Shenzhen china

MOQ : 100pcs

Price : negotiable

Supply Ability : 100k/month

Packaging Details : 25 PCS/Carton; Net weight/PC：18.75kg；Gross weight/Carton：19kg Outside carton dimension: L×W×H =43cm×26cm×25cm;

Application : Led lights outdoor

Warranty time : 5 years

Mode : HLB-150H-36A

Waterproof type : IP67

Rated power : 150W

Maximum Output voltage : 36V

PF (Typ.) : 0.96

Efficiency (Typ.) : 90%

Brand : Phenson

Power supply type : Constant current

Contact Now

HLB series 150W Outdoor Led Driver Constant Current Power Supply IP67



Model list ,

Model O/P O/P Rated Power O/P THD PF Efficiency
Voltage Current Current (Typ.) (Typ.) (Typ.)
    Tolerance
HLB-150H-36A 25-36V 4.2A 151.2W ±5% 15% 0.96 90%
HLB-150H-48A 36-48V 3.25A 151.2W ±5% 15% 0.96 90%
Custom-Tailor / / / / / / /



Input Characterstics,



Parameter Min Typ. Max Remarks
Rated AC input range 100Vac   277Vac
AC input range 90Vac   305Vac
Input frequency range 47Hz   63Hz
Max input current     1.8A 90Vac, full load
Inrush current     60A 230Vac/50Hz, cold start
No load power   1.0W 1.5W 230Vac/50Hz, no load
Power factor 0.95 0.96   230Vac/50Hz, full load
  0.9     100-277Vac/50Hz, 70-100% Load
THD     15% 100-277Vac/50Hz, 70-100% Load



Output Characterstics,





Parameter Min Typ. Max Remarks
Output voltage range HLB-150H-36 25V 33V 36V
  HLB-150H-48 36V 45V 48V
  Custom-Tailor / / /
Rated output current HLB-150H-36     4.2A
  HLB-150H-48     3.15A
  Custom-Tailor / / /
Current adjustable HLB-150H-36 2.1A 4.2A 4.6A

range
  HLB-150H-48 1.6A 3.15A 3.5A
  Custom-Tailor / / /
No load voltage HLB-150H-36 38V 42V 45V
  HLB-150H-48 50V 52V 55V
  Custom-Tailor / / /
Efficiency @230Vac HLB-150H-36 88% 90%
  HLB-150H-48 88% 90%
  Custom-Tailor / / /
Output current tolerance -5%   5%
Output current ripple(PK-PK)   5% 10% Full load
Start-up current overshoot     10%
Start-up time   1S 2S 230Vac
Line Regulation -1%   1% Full load
Load Regulation -2%   2%



HLB series 150W Outdoor Led Driver Constant Current Power Supply IP67
