Constant Current Driver IP67 60W Five Years Warranty Optional Dimming Function: 0-10V PWM Timing

Brand Name : Phenson

Model Number : HLB-60H-36A

Certification : CE Rohs

Place of Origin : Shenzhen China

MOQ : 5 pcs

Price : negotiable

Supply Ability : 100k/month

Packaging Details : a.Outside carton dimension: L×W×H =48cm×24cm×19cm; b. 60 PCS/Carton; c. Net weight/PC：19.8kg；Gross weight/Carton：20.6kg

Material : Aluminium alloy

Rated Power : 60W

Maximum Output voltage : 36V

O/P Current : 1.65A

O/P Current Tolerance : 15%

PF (Typ.) : 0.97

Recharegeable : Yes

Efficiency (Typ.) : 90%

Contact Now

Constant Current Driver IP67 60W Five Years Warranty Optional Dimming Function: 0-10V PWM Timing



Features:

  1. Metal housing design with functional grounding
  2. Built-in active PFC function
  3. Meet IP67 grade, can meet the demand of indoor and outdoor installation.
  4. Function-option :The output current is adjusted by potentiometer
  5. Optional dimming function: 0-10V, PWM, Timing
  6. Surge Protection: L-N 4kV
  7. 5 years warranty



Application:

  • LED Street Lighting
  • LED Architectural Lighting
  • LED Patio Lighting
  • LED Floodlight

Other LED Lighting Fixtures



Model List


Model O/P O/P Rated Power O/P THD PF Efficiency
Voltage Current Current (Typ.) (Typ.) (Typ.)
    Tolerance
HT-HLB-60H-36A 25-36V 1.65A 60W ±5% 15% 0.97 90%
HT-HLB-60H-48A 36-48V 1.2A 60W ±5% 15% 0.97 90%
Custom-Tailor / / / / / / /



Input Characteristics



Parameter Min Typ. Max Remarks
Rated AC input range 100Vac   277Vac
AC input range 90Vac   305Vac
Input frequency range 47Hz   63Hz
Max input current     0.7A 90Vac, full load
Inrush current     60A 230Vac/50Hz, cold start
No load power   1.0W 1.5W 230Vac/50Hz, no load
Power factor 0.95 0.97   230Vac/50Hz, full load
  0.9     100-277Vac/50Hz, 70-100% Load
THD     10% 100-277Vac/50Hz, 70-100% Load



Output Characteristics



Parameter Min Typ. Max Remarks
Output voltage range HLB-60H-36 25V 33V 36V
  HLB-60H-48 36V 45V 48V
  Custom-Tailor / / /
Rated output current HLB-60H-36     1.8A
  HLB-60H-48     1.2A
  Custom-Tailor / / /
Current adjustable HLB-60H-36 1.5A 1.8A 1.95A

range
  HLB-60H-48 0.9A 1.2A 1.3A
  Custom-Tailor / / /
No load voltage HLB-60H-36 42V 46V 50V
  HLB-60H-48 52V 58V 65V
  Custom-Tailor / / /
Efficiency @230Vac HLB-60H-36 88% 90% /
  HLB-60H-48 88% 90% /
  Custom-Tailor / / /
Output current tolerance -5%   5%
Output current ripple(PK-PK)   3200mvVVVV 5000mV Full load
Start-up current overshoot     10%
Start-up time   1S 2S 230Vac
Line Regulation -3%   3% Full load
Load Regulation -3%   3%

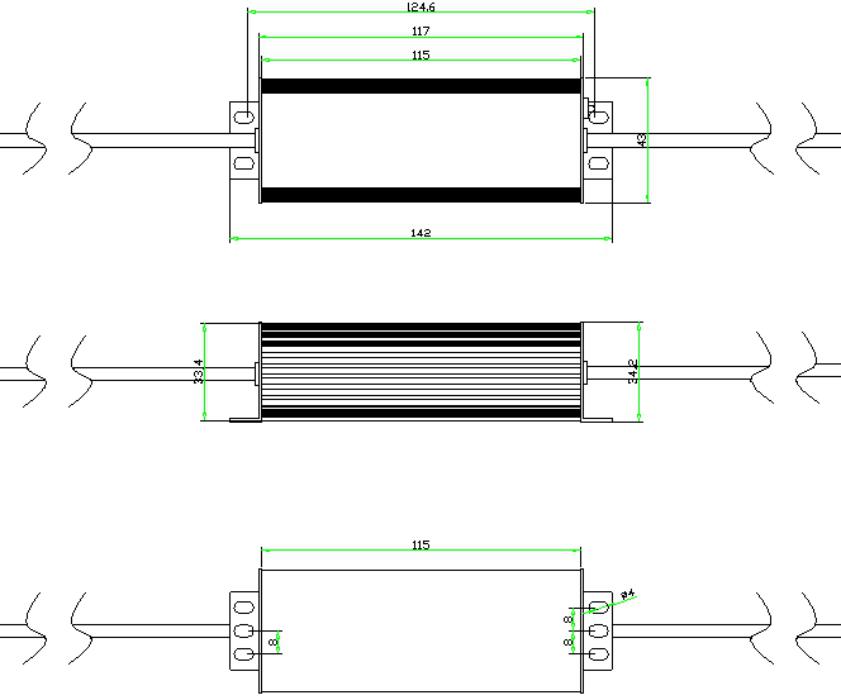

Mechanical Characteristics (Unit: mm)



Constant Current Driver IP67 60W Five Years Warranty Optional Dimming Function: 0-10V PWM Timing



NOTE:

Input Wire

 UL model: UL #18AWG 3*0.824mm²,GREEN: PE,BLACK: L,WHITE: N
Euro model: VDE 3*0.75mm²,YELLOW/GREEN: PE,BROWN: L,BLUE: N
Output Wire UL model: UL #18AWG 2*0.824mm²,RED: V+,BLACK: V-
Euro model: VDE 2*0.75mm²,BROWN: V+,BLUE: V-
DIM Wire #22AWG, PURPLE: DIM+,GRAY: DIM-
