Automotive Exterior 2835 Series White / Red / Yellow Color SMD Zener Diode For Auto Application
Feature :
1. Dimension(length*width*height: mm): 2.8* 3.5* 0.65 mm
2. High heat resistance, low thermal resistance, high reliability
3. Light color consistency is good, high color gamut
4. High light efficiency, high brightness, high current drive
5. Lead-free package, in line with Rohs
6. Electrostatic Discharge Withstand Voltage Level ≥2000V / ≥8000V(ESD Protection Device).
7. Package 2000pcs/reel
8. PCT lead frame
9. Moisture Sensitivity Level.2
10 Primer process for the gold plating has sulphide protection.
11. With Zener to protect the ESD
12. Sample available
13. Audi ,Lincon, BMW using this kind of diode .

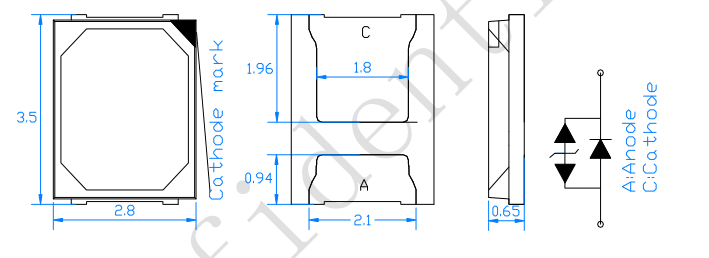

Package Dimmension :
Application :
1. Daytime running light
2. Tail light
3. CHMSL,TSL(Front/Rear),DRL,Fog Lamp,Reverse Lamp.
Description :
The product qualification test plan is based on the guidelines of AEC‐Q101 Stress Test Qualification for Automotive Grade Discrete Semiconductors.
Parameter :
| Part No. | Iv(lm) | X/Y/WD(nm) | Vf(V) | If(mA) | View angle |
| RF-WMRI32DS-AB-NZ | 28 | (0.3,0.32) | 3 | 60 | 120° |
| RF-WMRI32DS-BB-NZ | 18 | (0.57,0.41) | 3 | 60 | 120° |
| RF-WMRI32DS-FH-JZ | 40 | (0.57,0.41) | 3 | 150 | 120° |
| RF-OMRI32TS-CE-J | 24 | 620 | 2.2 | 150 | 120° |
Note:
1. 1/10 Duty cycle, 0.1ms pulse width.
2. The above forward voltage measurement allowance tolerance is 0.1V.
3. The below color coordinates measurement allowance tolerance is 0.003.
4. the above luminous flux measurement allowance tolerance ±10%.
5. Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product.
6. All measurements were made under the standardized environment of Refond.
7.When the LEDs are in operation the maximum current should be decided after measuring the package temperature,junction temperature should not exceed the maximum rate.LED
